Product Details:
Payment & Shipping Terms:
|

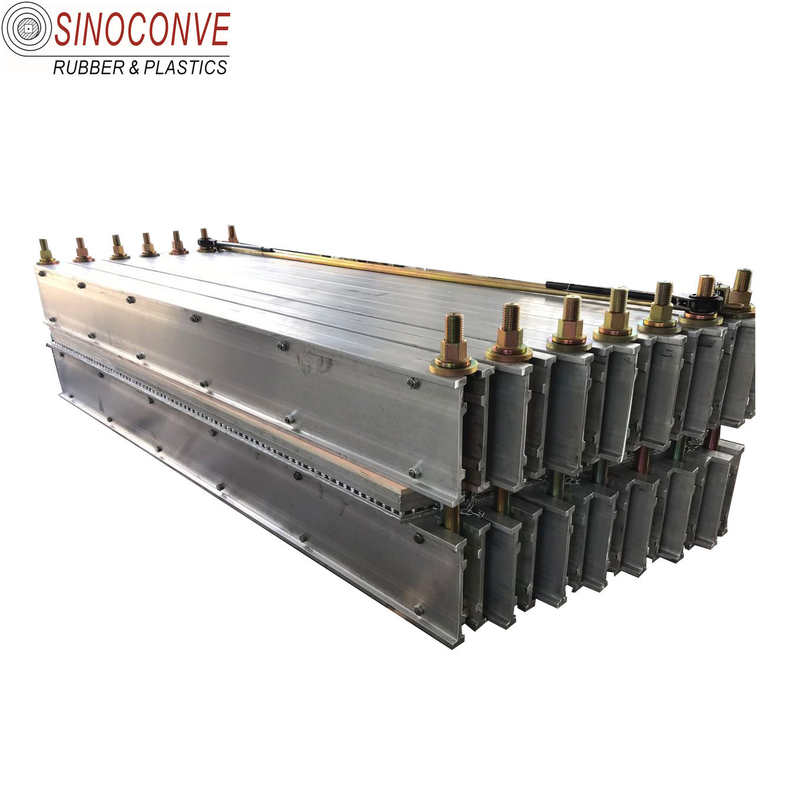

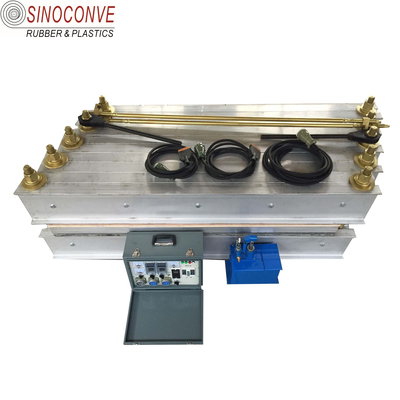

| Type: | Vulcanizer | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Pressure Vessel, Pump |
| Tire Machine Type: | Tire Forming Vulcanizer | Voltage: | 380V, 380 |
| Dimension(L*W*H): | 1970x830x725 | Year: | 2019 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Power (kW): | 19.1 KW | Weight (KG): | 900 KG |
| Applicable Industries: | Construction Works , Energy & Mining | Showroom Location: | None |
| Raw Material: | Aluminum Alloy | Application: | Conveyor Belt Hot Vulcanizing Joint |
| Cooling System: | Water Cooling | Structure: | Horizontal |
| Heating Material: | Heater | Jointing Length: | 830mm |
| Vulcanizing Temperature: | 145℃ | Belt Width: | 1200mm------2600mm |
| Marketing Type: | New Product 2020 | Port: | Ningbo/Shanghai |
| width of vulcanized belt--max | mm | 1200 |
| vulcanizing pressure | MPA | 1.0-1.8 Mpa(adjustable) |
| vulcanizing temperature | ℃ | 145(adjustable) |
| surface temperature of vulcanizing plate | ℃ | 145+/-5 |
| heating-up time (from normal temperature to vulcanizing temperature) | min | 30 |
| net weight | KG | 900 |
| Adjustable temperature range | ℃ | 0-----200 |
| Adjustable time range | min | 0---60 |
| Voltage | V | 380/50 |
| Overall sizes after assembled (LxWxH) | mm | 1970×830×725 |
| Power of control box | kw | 19.1 |
| Effective vulcanizing length | mm | 830 |
| Dimension of heating plate(LxW) | mm | 1350×830 |
