Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other | Customized Support: | OEM |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Type: | V-BELT, B |
| Material: | Rubber | Package: | 50PCS/CARTON |
| Product Name: | V Belt | Temperature Range: | -55℃ To 70℃ |
| Outside Fabric: | Polyester Cotton Canvas | Reinforcement: | Polyester Cord |
| MOQ: | 1 | Color: | Black |
| Top Rubber: | NR,SBR | Application: | Power Transimission |
--- Multiple special designs
--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
Top rubber: NR,SBR
Reinforcement: Polyester cord
Buffer rubber: NR,SBR
Bottom rubber: NR,SBR
Outside fabric: Polyester cotton canvas
-- Blending systems
-- Choppers
-- HVAC systems
-- Lawnmowers
-- Compressors
-- Crushers
-- Scarifier
Classical V belt:
Type | Top width | Pitch width | Height | Length range | Angle |
mm | mm | mm | mm | ||

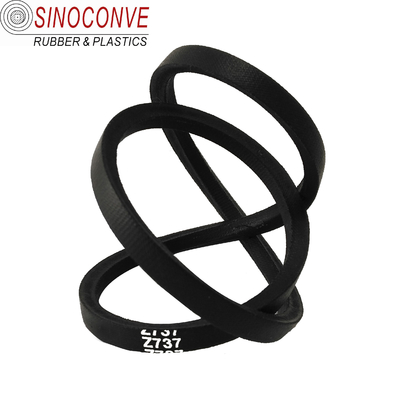

Z/FM/O | 10 | 8.5 | 6 | 280---2480 | 40° |

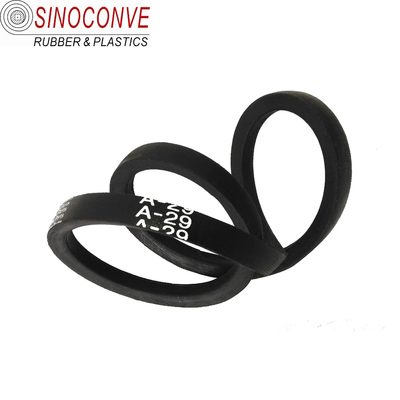

A | 13 | 11 | 8 | 330---8000 | 40° |

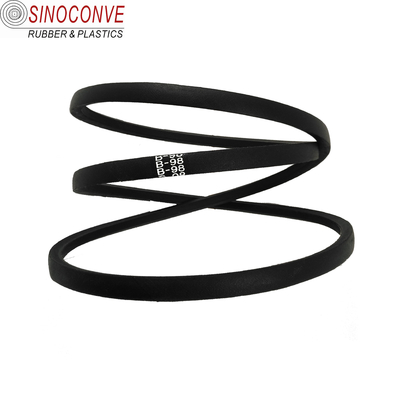

B | 17 | 14 | 11 | 457---17000 | 40° |
C | 22 | 19 | 14 | 700---17000 | 40° |
D | 32 | 27 | 19 | 1100---17000 | 40° |
E | 38 | 32 | 23 | 3300---17000 | 40° |
Narrow V belt:
Type | Top width | Pitch width | Height | Length range | Angle |
mm | mm | mm | mm | ||
3V | 9.5 | / | 8 | 375--3353 | 40° |
5V | 16 | / | 13.5 | 795---17000 | 40° |
8V | 25.5 | / | 23 | 2500---17000 | 40° |
SPZ | 10 | 8 | 8 | 375---3353 | 40° |
SPA | 13 | 11 | 10 | 475---7200 | 40° |
SPB | 17 | 14 | 14 | 750---17000 | 40° |

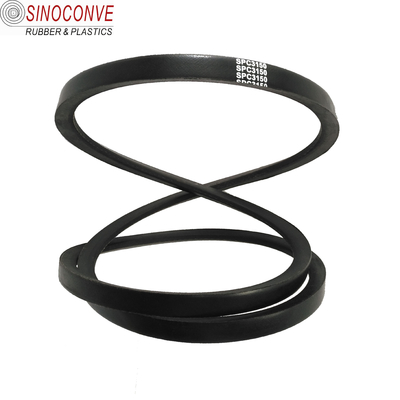

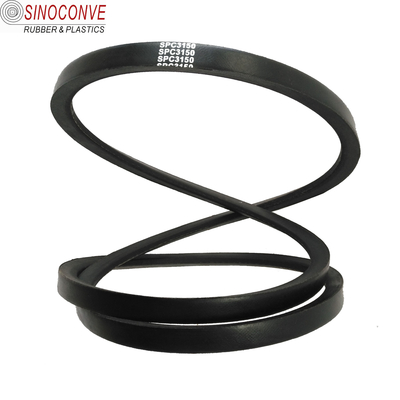

SPC | 22 | 19 | 18 | 1350---17000 | 40° |
Other special types:
Type | Top width | Pitch width | Height | Angle |
mm | mm | mm | ||

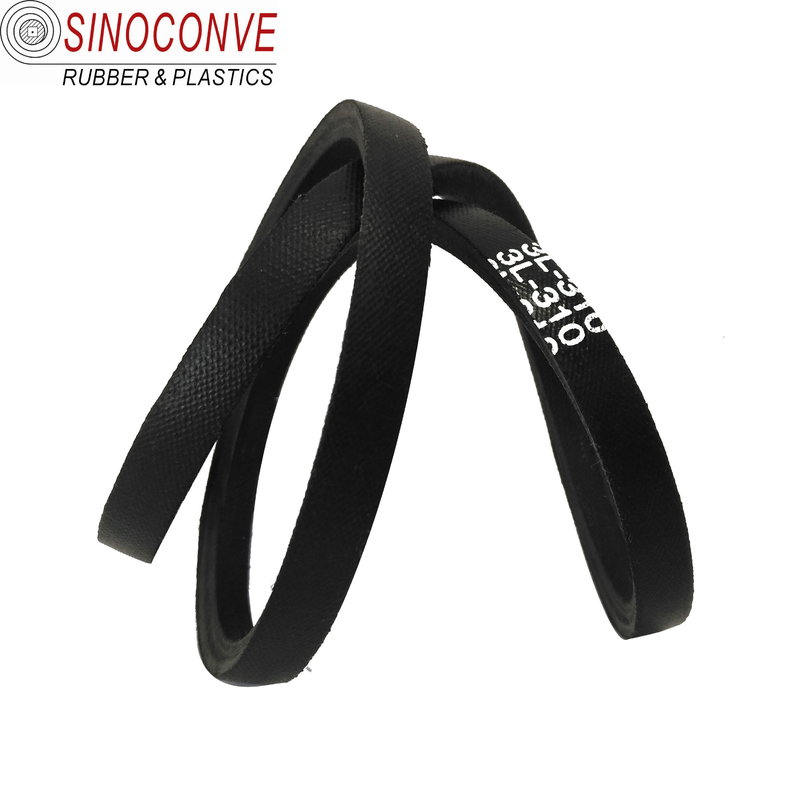

3L | 9.8 | / | 5.6 | 40° |
4L | 12.7 | / | 8 | 40° |
5L | 16.8 | / | 10.5 | 40° |
8.5*8 | 10.5 | 8.5 | 8 | 40° |
Banded Jointed Rubber V belt:
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Low MOQ, 1pc for sample checking is available
Yes. Please inform us your logo or design before mass production
