-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
 |
|
|
|
|
Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Material: | Rubber |
| Material Feature: | Heat Resistant | Structure: | Belt Conveyor |
| Voltage: | 380 | Power: | 50 |
| Dimension(L*W*H): | 2X1X1 | Warranty: | 1 Year |
| Width Or Diameter: | 500mm-2500mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | RUBBER + FABRIC |
| Weight (KG): | 100 Kg | Product Name: | Rubber Conveyor Belt |
| Application: | Quarry | Model: | EP100 |
| Usage: | Horizontal Convey | Length: | 50-500m/roll |
| Belt Type: | Heat Resistant Rubber Belt | Belt Width: | 400/500/650/600/800/1000/1200/1500mm |
| Standard: | DIN 22102 | Thickness: | 1mm-10mm/customized |
| Quality: | 8-24MPA |
SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.
-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA | DIN-X,Y,W RMA-1,RMA-2 N17,M24 | |||
Belt width (mm) | 500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42" 48",60",72",78",86",94" | |||
Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 | 330PIW, 440PIW | |||
Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, | 3/16"+1/16", 1/4"+1/16" | |||
Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | ||||
Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | ||||
Belt edge type | moulded(sealed) edge or cut edge | ||||
Closed V, Open V type
C5,C10,C15,C20,C25
Step 1: Raw material inspection
Step 2: Advance equipment to guarantee quality from the details
4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

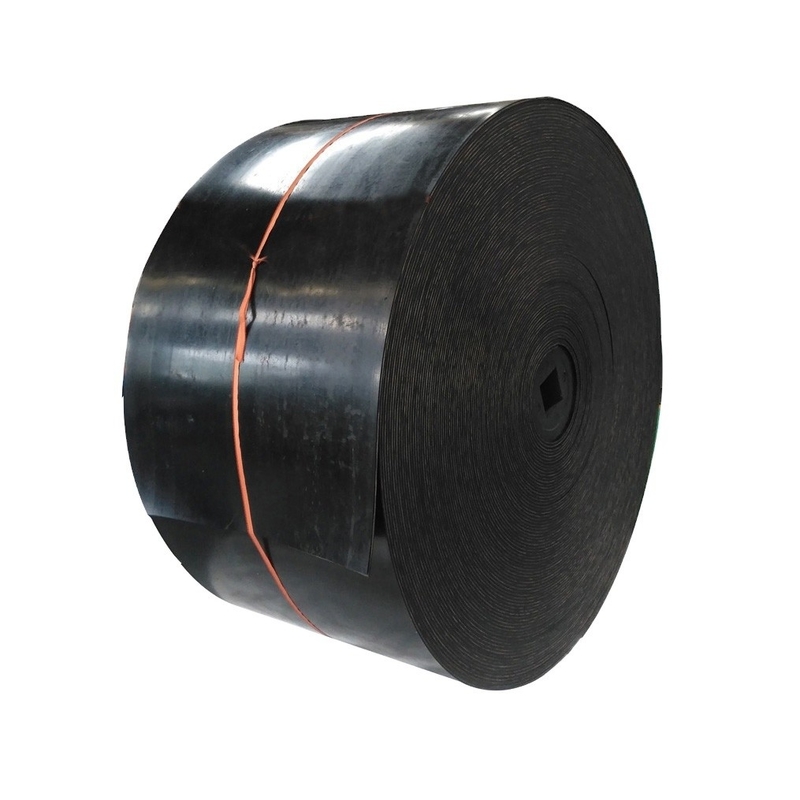

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
