Product Details:
Payment & Shipping Terms:
|
| Warranty: | None | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Customized Support: | OEM, ODM, OBM | Standard Or Nonstandard: | Standard |
| Type: | Flat Belt | Material: | Rubber |

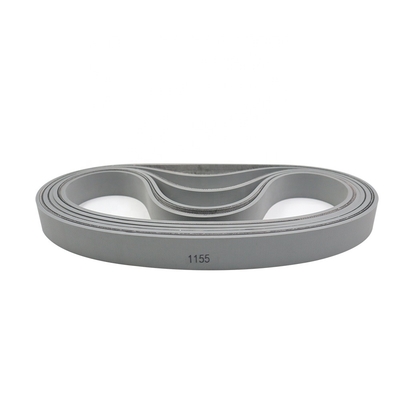

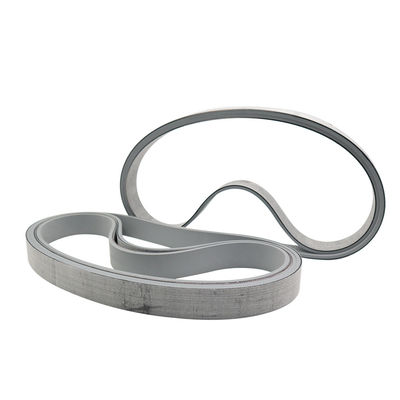

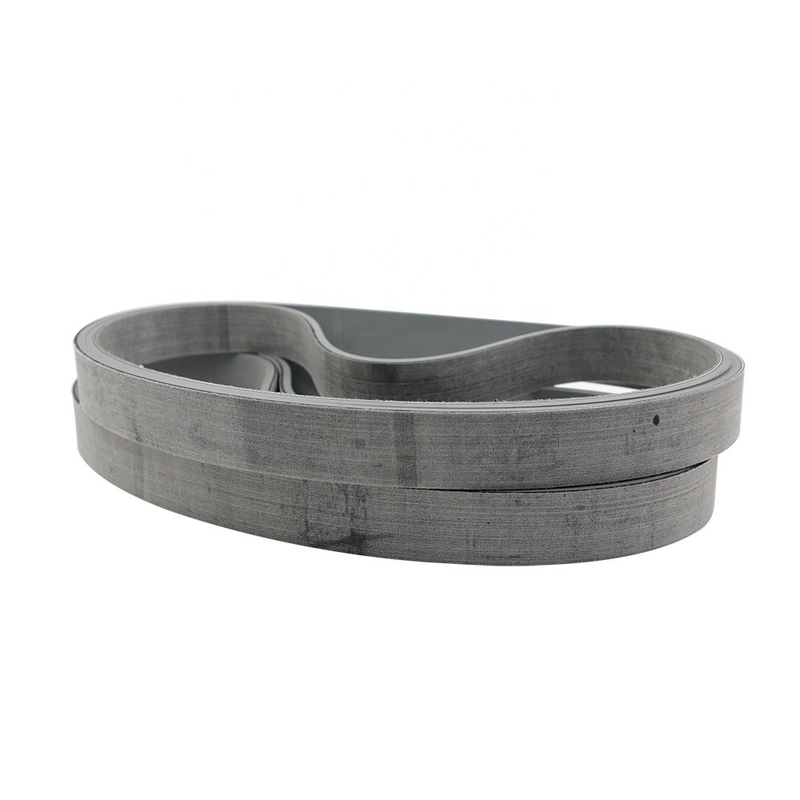

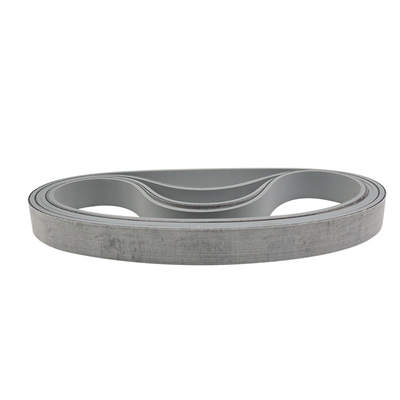

| Product Name: | Nylon Rubber Flat Transmission Belt | Color: | Customized Color |
| Max Width: | 500mm | Length: | Customized |
| Thickness: | 2~10mm | TEMPERATURE(℃): | -20~80 |
| TRACTION LAYER: | PA | COVER MATERIAL: | NBR |
| Feature: | 3 Ply | Packing: | Carton |
| Port: | Ningbo/Shanghai |
THICKNESS (MM) | TRACTION LAYER | COVER COLOR | COVER MATERIAL | TEMPERATURE(℃) | MAX WIDTH(MM) |
1.0 | PA | Green&Yellow | NBR | -20-80 | 500 |
1.5 | PA | Green&Yellow | NBR | -20-80 | 500 |
2.4 | PA | Green&Yellow | NBR | -20-80 | 500 |
2.5 | PA | Green&Yellow | NBR | -20-80 | 500 |
3.0 | PA | Green&Yellow | NBR | -20-80 | 500 |
3.5 | PA | Green&Yellow | NBR | -20-80 | 500 |
4.0 | PA | Green&Yellow | NBR | -20-80 | 500 |
4.5 | PA | Green&Yellow | NBR | -20-80 | 500 |
5.0 | PA | Green&Yellow | NBR | -20-80 | 500 |
Closed V, Open V type
C5,C10,C15,C20,C25
Yes, we mainly produce Rubber conveyor belts and Rubber belts over 20 years.
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
