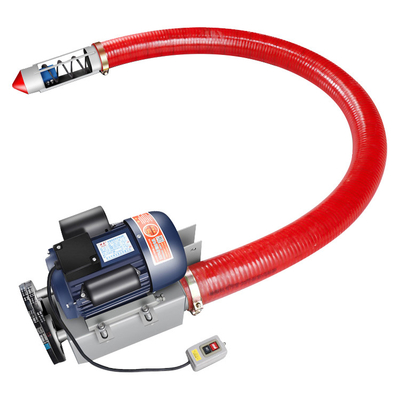

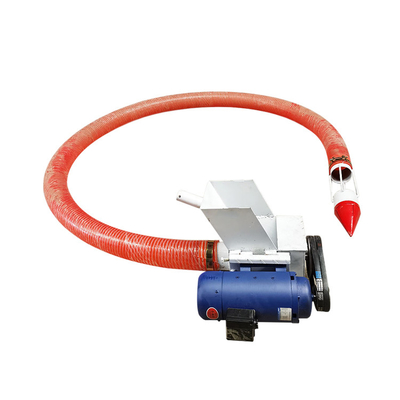

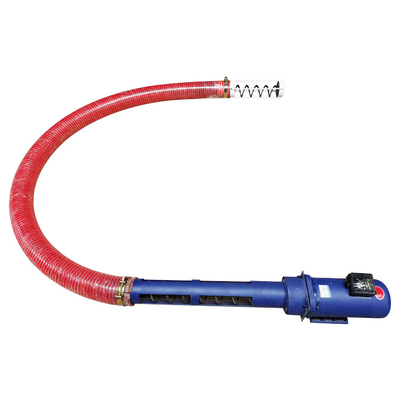

Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms

Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms

Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms
Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms

Large Image :  Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms Get Best Price

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $420.00/sets 2-9 sets
Detailed Product Description
Applicable Industries: Food & Beverage Factory, Farms, Construction Works , Energy & Mining Showroom Location: None
Condition: New Material Feature: Heat Resistant
Structure: Belt Conveyor Power: 2.2 KW, 2.2-5.5(KW)
Dimension(L*W*H): Size Customization Warranty: 1 Year
Width Or Diameter: Size Customization Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine
Weight (KG): 150 Kg Product Name: Screw Conveyor
Type: Hose Screw Conveyor Conveying Capacity: 3-20(t/h)
Conveying Distance: 1--25(m) Weight: 150(kg)
Application: Crops, Buildings,etc. Tube: Ox Tendon Tube
Motor: Copper Wire Motor Customized: Support
After Warranty Service: Online Support Local Service Location: None
After-sales Service Provided: Online Support Port: Ningbo/Shanghai

Product Description
Customizable Size Powder Transfer Insulated Grain Flexible Screw Conveyor for Farms 0

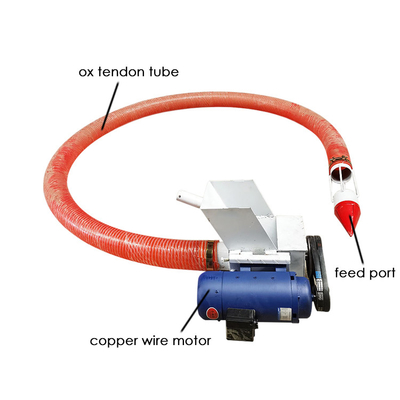

The grain suction machine is driven by the motor and transmitted to the spiral plate through the belt for rotation. The  motor shaft and the spiral spring are connected by a screw. When the motor is started, the motor drives the spiral spring  to rotate, and the grain at the aggregate opening will be under the action of the rotating spring, It rises along the spiral  angle direction of the spring. When it reaches the discharge port, the grain will be unloaded automatically due to the action  of gravity.
Product Name
Grain Suction Machine
Type
Hose screw conveyor
Power
2.2-5.5(KW)
Conveying Capacity
3-20(t/h)
Conveying Distance
1--25(m)
Weight
150(kg)
Application
Crops, Buildings,etc.

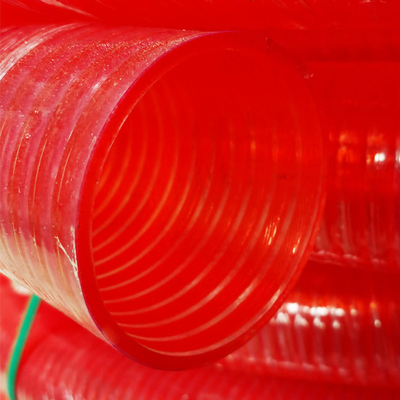

Tube
Ox tendon tube

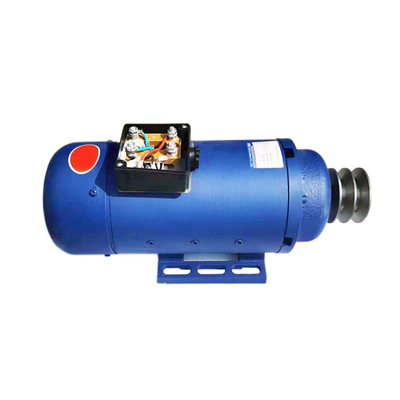

Motor
Copper wire motor
Customized
Support
