Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Product Name: | Industrial Mining Steel Rubber Conveyor Belt And Conveyor Roller | Type: | Flat/Buffer/Cleaning |
| Color: | Red Or Black | Advantage: | Aging Resistance |
| Usage: | Conveyor Belt System | Bearing Model: | 204205305306308000 |
| Key Word: | Conveyor Roller | Material: | Steel |
| Application: | Mining | Packing: | Carton |
| After Warranty Service: | Online Support | Local Service Location: | None |
| Port: | Ningbo/Shanghai |

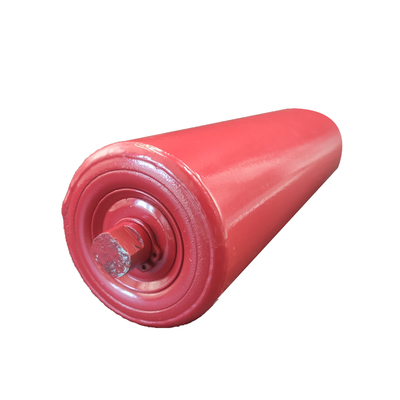

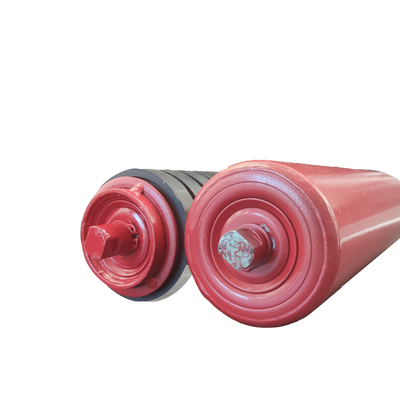

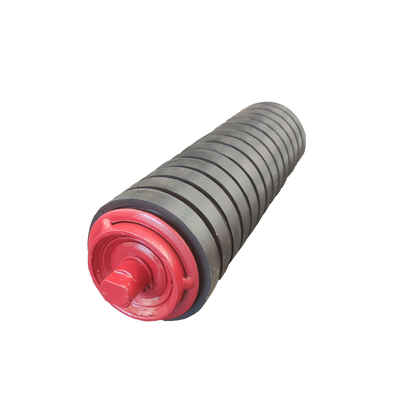

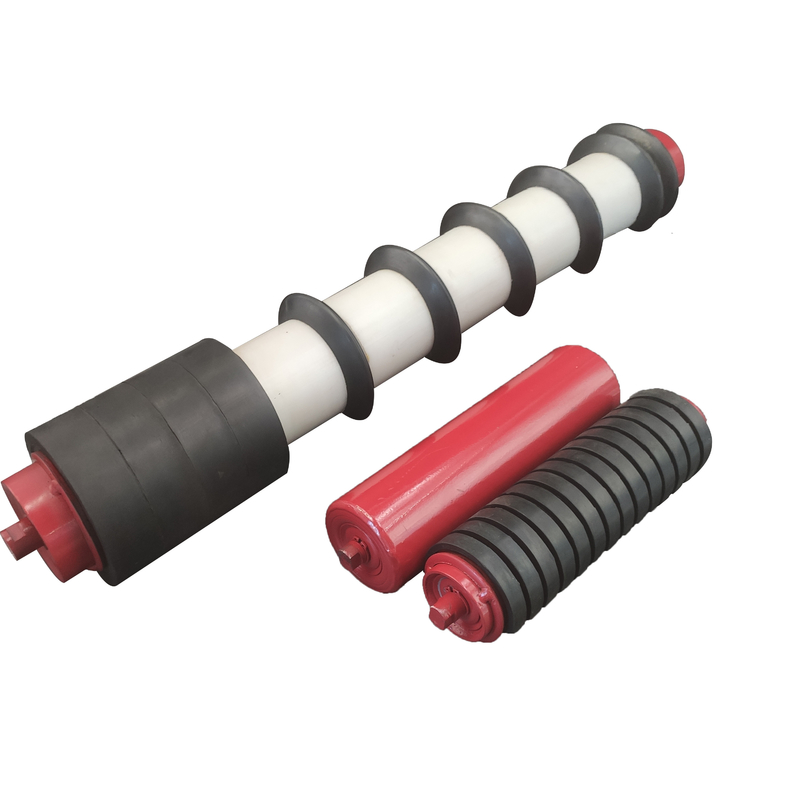

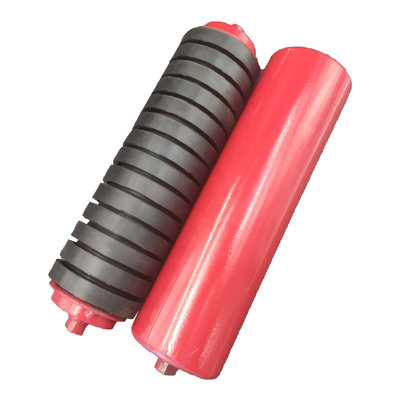

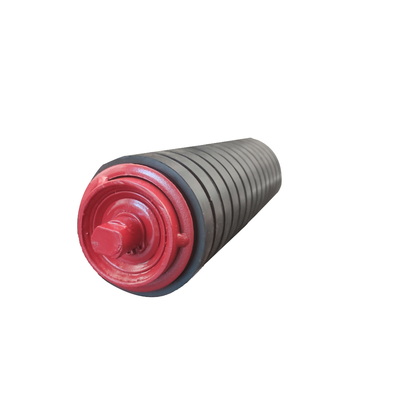

Roller Properties | ||
Product Name Conveyor Roller | Product Name Conveyor Roller | |
Diameter | 76-219mm | |
Length | 190-3500mm | |
Color | OEM | |
Bearing No | 6204, 6205, 6305, 6306, 6307, 630 | |
Standard | ISO/DIN | |
Tube Material | Carbon Steel | |
Shaft Material | Cold Drawing Round Steel | |
Shaft Diameter | 20mm, 30mm , 35mm, 40mm | |
Pipe Thickness | 3mm,35mm, 4mm&OEM | |
D(mm) | L(mm) | Bearing model |
89 | 180,190,200,235,240,250,275,280,305,215,350,375,380,455,465,600,750,950,1150 | 204 |
108 | 190,200,240,250,305,315,360,375,380,455,465,525,530,600,700,750,790,800,950,1150,1400,1600 | 204 205 305 306 |
133 | 305,375,380,455,465,525,530,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200 | 205 305 306 |
159 | 375,380,455,465,525,530,600,700,750,790,800,900,1000,1050,1100,1120,1150,1250,1400,1500,1600,1700,1800,2000,2200,2500,2800,3000,3150 | 305 306 308 |
193.7 | 2200,2500,2800,3000,3150,3350 | 308 310 |
217 | 600,640,1050,1120,1600,1700,3150,3350 | 308 310 |
D(mm) | L(mm) | Bearing model |
89 | 190,200,230,240,280,305,315,375,380,455,465,600,750,950,1150 | 204 |
108 | 190,200,240,250,305,315,375,380,455,465,525,600,700,750,800,950,1150,1400 | 205 |
133 | 305,350,375,380,455,525,530,600,700,790,800,950,1150,1400,1600 | 305 |
159 | 375,380,455,465,525,600,630,640,670,700,750,790,800,900,950,1050,1120,1150,1400,1600 | 306 308 |
D(mm) | L(mm) | Bearing model |
89 | 315,380,465,600,750,950,1150 | 204 |
108 | 315,380,465,600,700,750,790,950,1150,1400,1600 | 205 |
133 | 465,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200 | 305 308 |
159 | 600,700,790,800,900,950,1000,1050,1100,1120,1150,1250,1400,1500,1700,1800,2000,2500,2800,3000,3150 | 306 308 |
193.7 | 1100,1250,1400,1500,1600,1700,2200,2500,2800,3000,3150 | 308 |
219 | 2200,2500,2800,3000,3150 | 310 |
