-- Excellent dynamic curve performance
-- Crack resistant
-- Ozone resistant
-- Anti-aging
-- Heat resistant
-- Wear resistant
 |
|
|
|
|
Product Details:
Payment & Shipping Terms:
|
| Warranty: | None | Applicable Industries: | Garment Shops, Machinery Repair Shops, Retail, Construction Works , Energy & Mining |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Type: | TIMING BELT |
| Material: | Rubber |
Model No | Width | Length | Teeth No |

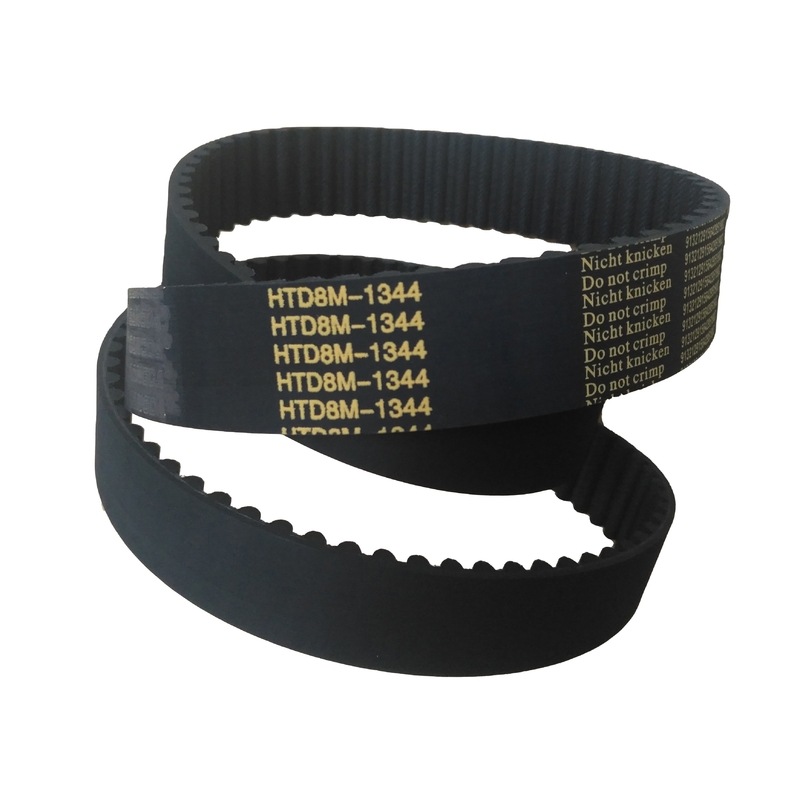

HTD8M | CUSTOMIZED | 1520 | 190 |
-- Excellent dynamic curve performance
-- Crack resistant
-- Ozone resistant
-- Anti-aging
-- Heat resistant
-- Wear resistant
Belt body: high quality synthetic CR rubber
Reinforcement: excellent quality fiberglass cord
Belt teeth: protected by highly wear resistant nylon elastic fabric
Double sided timing belt can be divided into two types:
-- DA with symmetrical teeth
-- DB with staggered teeth
Height: 450mm
MOQ: 1 sleeve
Sleeve cutting machine is available
L,H,MXL,XL,XH,XXH
T5,T10,T20
HTD-3M,HTD-5M,HTD-8M,HTD-14M,HTD-20M
STPD/STS-3M,5M,8M,14M,20M
RPP/HPPD-3M,5M,8M,14M
Type | P | P1 | ht | hs |
L | 9.525 | 4.65 | 1.91 | 3.6 |
H | 12.7 | 6.12 | 2.29 | 4.3 |
MXL | 2.032 | 1.14 | 0.51 | 1.14 |
XL | 5.08 | 2.57 | 1.27 | 2.3 |
XH | 22.225 | 12.57 | 6.35 | 11.2 |
XXH | 31.75 | 19.05 | 9.53 | 15.7 |
Type | P | P1 | ht | hs |
T5 | 5 | 2.65 | 1.2 | 2.2 |
T10 | 10 | 5.3 | 2.5 | 4.5 |
Type | P | P1 | ht | hs |
HTD-3M | 3 | 1.82 | 1.17 | 2.4 |
HTD-5M | 5 | 2.86 | 2.06 | 3.3 |
HTD-8M | 8 | 5.15 | 3.36 | 6 |
HTD-14M | 14 | 9 | 6.02 | 10 |
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Low MOQ, 1pc for sample checking is available
Yes. Please inform us your logo or design before mass production
We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
