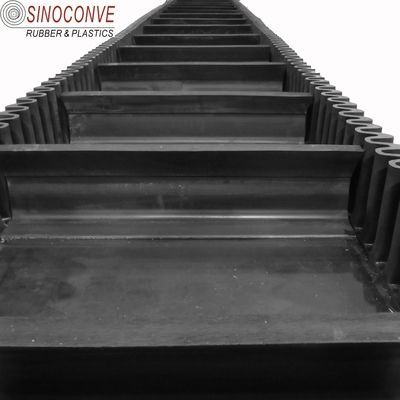

-- Rubber weigh feeder belt is mainly installed on belt feeder for coal,cement and other powder material.
-- It is made by two parts: sidewall and base belt.
 |
|
|
|
|
Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Material: | Rubber |
| Material Feature: | Heat Resistant | Structure: | Inclining Conveyor |
| Voltage: | 380V | Power: | 0.4kW - 22kW |
| Dimension(L*W*H): | 50M X 1000MM | Warranty: | 1 Year |
| Width Or Diameter: | 500mm-2500mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2021 |
| Warranty Of Core Components: | 1 Year | Core Components: | RUBBER + FABRIC |
| Weight (KG): | 2 Kg | Description: | Weighing Feeder Belts |
| Sidewall Height: | 40mm--400mm | Belt Width: | 300mm---1500mm |
| Ply Thickness: | 1.45mm/ply | Strength(N/mm): | 600/900/1200/1500 |
| Cover Thickness Upper: | 1.5-12 | Cover Thickness Lower: | 0-4.5 |
| Certificate: | ISO9001 | Length: | 8000mm, 6000mm,5000mm |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | None |
| After-sales Service Provided: | Online Support | Port: | Ningbo/Shanghai |
-- Rubber weigh feeder belt is mainly installed on belt feeder for coal,cement and other powder material.
-- It is made by two parts: sidewall and base belt.

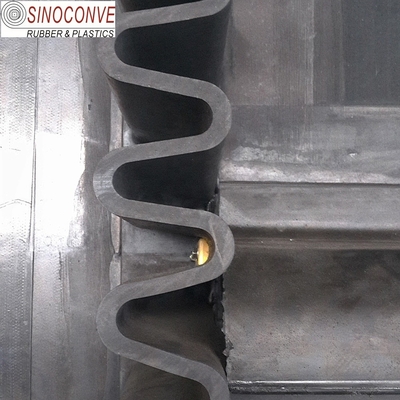

-- Sidewall is hot vulcanized on the base belt
-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing
Sidewall height(mm) | 40,60,80,100,120160,200,220,240 |
Belt width(mm) | 500,600.650,700,800 1000,1200,1400,1500 |
Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 |
Top+Bottom thickness(mm) | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5 |
Belt thickness(mm) | 6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm |
Belt length(mm) | 5000,6000,7000,8000,9000,10000 |
Closed V, Open V type
C5,C10,C15,C20,C25
Step 1: Raw material inspection
Step 2: Advance equipment to guarantee quality from the details
4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
