| Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Material: | Rubber |
| Material Feature: | Fire Resistant | Structure: | Inclining Conveyor |
| Voltage: | 220/380V | Power: | 0.4kW - 22kW |
| Dimension(L*W*H): | Customer Request | Warranty: | 1 Year |
| Width Or Diameter: | 500mm-2500mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | RUBBER + FABRIC |
| Weight (KG): | 100 Kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | Chevron Conveyor Belts | Quality: | Polyester |
| Fabric Structure Weft: | Polyamid | Standard: | RMA,DIN22102 |
| Type: | EP100,EP125,EP150,EP200,EP250,EP300 | Cover Thickness Upper: | 1.5-12 |
| Belt Width: | 400-2500mm | Length: | 50-500m/roll |
| Key Words: | Ep Conveyor Belt |

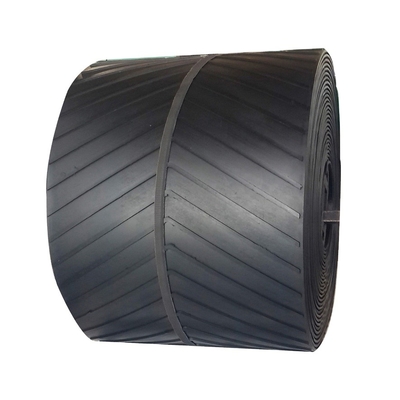

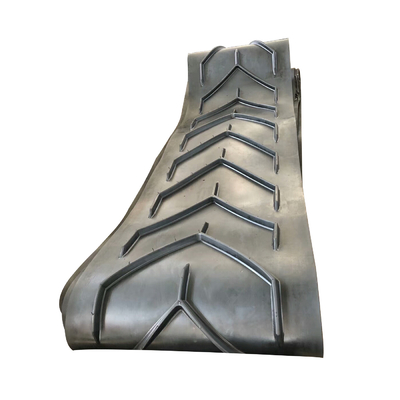

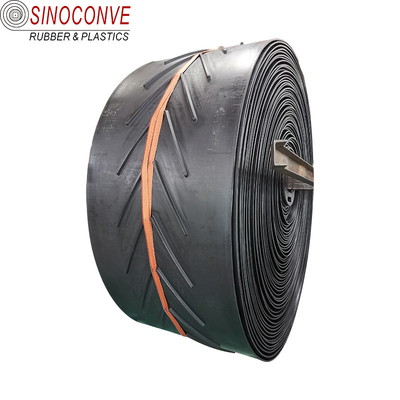

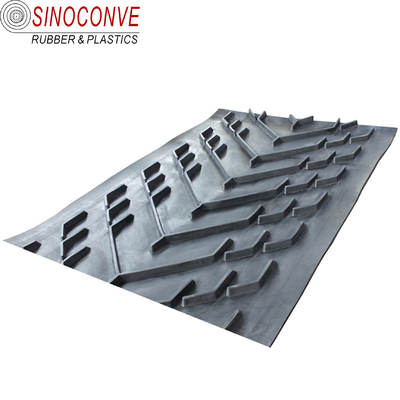

Chevron conveyor belts are used on slope angles up to approx. 30º for slightly rolling materials such as gravel and coal and up to approx. 40º for sticky materials such as wet sand and earth.
-- For steep angle conveying with incline less than 45º
-- Allows the use of smaller pulley diameters.

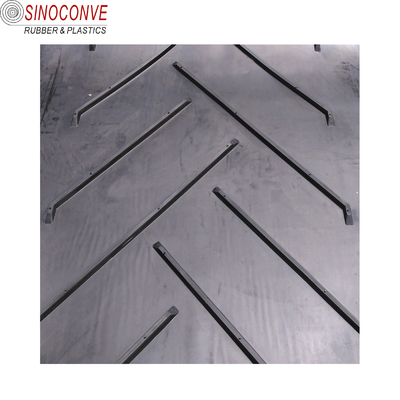

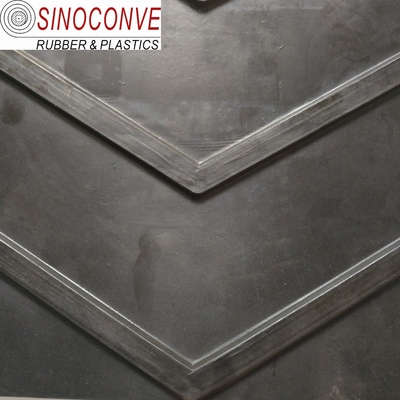

-- Cleat height range from 5mm to 25mm which is suitable to convey bulk material up to 80mm lump size.
-- Available in several high quality covers including abrasion, heat, fire, oil and fat resistant.
-- Chevron conveyor belts widths range from 400 up to 1200 mm
Step 1: Raw material inspection
Step 2: Advance equipment to guarantee quality from the details
4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.
Length and surface inspection
Thickness inspection
WIdth inspection
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
